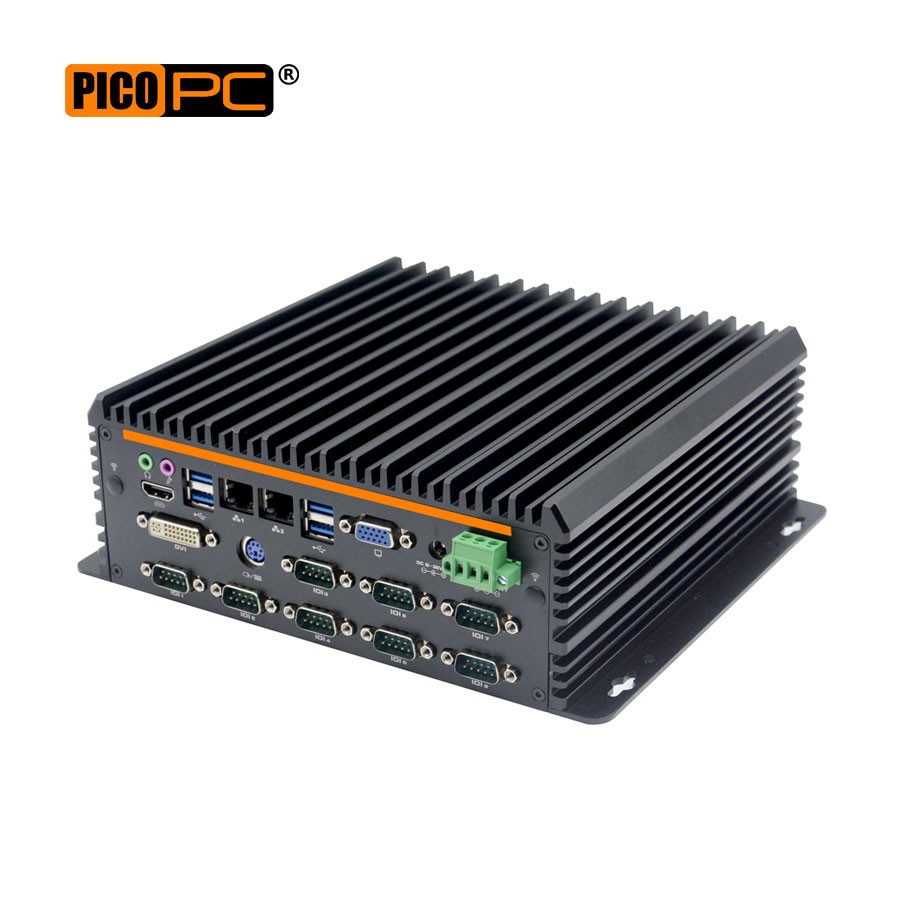

8th generation Intel® core™ i7-8565U quad-core embedded Industrial mini computer equipped with 10x RS232 COM ports (COM7~10 Support RS485/RS232). Fanless rugged computing for controlling, operating automation of industrial processes and monitoring systems and machines in the most challenging manufacturing and process environments and to take on a number of networking and communication tasks.System | Model | PICO PC MNHO-082 |
Part Number (P/N) | MO82I765UIP2L10C | |
Processor | CPU | 8th Gen. Intel® Core™ i7-8565U |
Frequency | up to 4.60 GHz | |
TDP | 15W | |
# of Cores | 4 | |
# of Threads | 8 | |
Cache | 8 MB Intel® Smart Cache | |
Memory | Size | Support up to 32GB (optional) |
Type | SODIMM DDR4 (non-ECC) | |
Slot | 2 | |
Storage | mSATA | Support 1 x mSATA SSD (optional) |
M.2 NVMe | Support 1 x M.2 2280 NVMe (optional) | |
2.5" SATA | Support 1 x 2.5" SATA SSD/HDD (optional) | |
Graphics | Ports | Three Display (HDMI, VGA and DVI-I) |
Features | Intel® HD Graphics 620 | |
Support 4K HD | ||
Support DirectX 12 OpenGL 4.5 | ||
Intel® Quick Sync Video | ||
Intel® Clear Video HD Technology | ||
Expansion Slots | mSATA | 1 x mSATA (For mSATA SSD) |
Mini PCIe | 1 x Full Size mini PCIe (For WiFi/4G Module) | |
M.2 | 1 x M.2 2280 NVMe (For M.2 NVMe SSD) | |
2.5" SATA | 1 x 2.5" SATA Slot (For 2.5" SSD/HDD) | |
USB | 1 x Internal USB (For USB Wi-Fi) | |
CPU Advanced Technologies | Intel® Speed Shift Technology | Yes |
Intel® Thermal Velocity Boost | Yes | |
Intel® Hyper-Threading Technology | Yes | |
Intel® Virtualization Technology | Yes | |
Enhanced Intel SpeedStep® Technology | Yes | |
Intel® Identity Protection Technology | Yes | |
Intel® Smart Response Technology | Yes | |
Intel® AES New Instructions | Yes | |
I/O Interfaces | LAN | 2 x Intel i211-AT Gigabit LAN (Support Network Wake-up/PXE) |
COM | 10 x RS232 DB9 COM | |
Display | 1 x HDMI | |
1 x VGA | ||
1 x DVI-I | ||
USB | 4 x USB 3.0 | |
3 x USB 2.0 | ||
PS/2 | 1 x PS/2 (Mouse & Keyboard) | |
DC-In | 1 x DC 9~36V In 1 (3pin Terminal Block) | |
1 x DC 9~36V In 2 (5.5*2.5mm Socket) | ||
Audio | 1 x Audio In & Out (ALC662 6-Channel HD) | |
GPIO | 1 x 12pin 4 Way In/Out GPIO (Phoenix Terminal) | |
SIM | 1 x SIM Slot | |
Antenna | 2 x Antenna Ports | |
Switch | 1 x Reset Switch | |
1 x Power Switch | ||
1 x AC Loss Power on Switch | ||
LED Indicator | 1 x HDD LED | |
1 x Power LED | ||
OS | Windows 10 | Support |
Linux | Support | |
Power Adapter | Input | AC 100-240V ~ 50-60Hz |
Output | DC 12V 5A | |
Safety & EMC | UL, CE, FCC, RoHS | |
EMC EN55022 CLASS B | ||
IEC 60950-1 | ||
Energy saving standards | Energy Star Ver. 2.0 | |
DOE Level VI | ||
ErP CoC Version 5 Tier 2 | ||
Working Environment | Operating Temperature | -10°C ~ 30°C |
Storage Temperature | -20°C ~ 70°C | |
Relative Humidity | 5% - 95% relative humidity (non-condensing) | |
Vibration | 0.5g rms/5-500HZ/random/operating | |
Compliance | Approvals | CE, FCC & RoHS |
Others | BIOS | 64Mb Flash ROM |
Watchdog | Support (L256 Segments, 0~255 Sec.) | |
Cooling | Aluminium Alloy FANLESS, Silent | |
Size | 205mm x 207mm x 78mm (L*W*H) | |
Package | 1 x Mini PC | |
1 x Power Adapter | ||
1 x Power Cord |
